Celotex GA4000

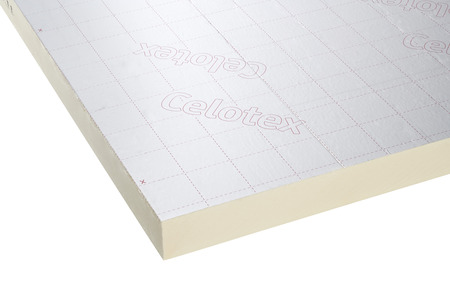

Celotex GA4000 is an easy to install polyisocyanurate (PIR) insulation board with excellent thermal performance, featuring a low emissivity foil facing. Available in thicknesses from 50mm to 100mm, it can be considered for roof, wall and floor applications.
U-value Calculator
Start your U-value calculation >Product Features
- Lightweight 2400 x 1200mm boards
- Low emissivity foil facing
- BBA certified – certificate 17/5405 (Pitched Roof, Dry Lining, Floor Insulation)
Fire Classification
Euroclass F Reaction to Fire classification, according to BS EN 13501-1. Products with this level of classification are not provided with a rating for smoke emission.
Product Specification
Thickness (mm) | Length (mm) | Width (mm) | Lambda Value (W/m.K) | R-Value (m².K/W) |
---|---|---|---|---|
50 | 2400 | 1200 | 0.022 | 2.25 |
60 | 2400 | 1200 | 0.022 | 2.70 |
70 | 2400 | 1200 | 0.022 | 3.15 |
75 | 2400 | 1200 | 0.022 | 3.40 |
80 | 2400 | 1200 | 0.022 | 3.60 |
90 | 2400 | 1200 | 0.022 | 4.05 |
100 | 2400 | 1200 | 0.022 | 4.50 |
Product Benefits
- Thermal Performance - Excellent thermal performance with a thermal conductivity of 0.022 W/m.K, reducing the thickness of insulation required to hit the target U-value.
- High Performance Facer - Low emissivity foil facing provides improved thermal performance in sealed cavity air spaces, improving the achievable U-value.
- Easy to Install - Celotex boards are light and rigid assisting with ease of transportation, handling and fitting.
- BBA Certified - Celotex GA4000 has been assessed by the BBA as fit for use in defined roof, wall and floor applications if installed, used and maintained as set out in the certificate. Please read the BBA certification page for full details and restrictions.
Key Considerations
When using Celotex GA4000, you need to satisfy yourself that use of the product meets all relevant national Building Regulations and guidance as well as local, national and other applicable standards relevant for your construction or application, including requirements in relation to fire and applicable height restrictions.
Please refer to the following product documents:
- Product Datasheet
- BBA Certificate
- Declaration of Performance
- Health & Safety Datasheet
Celotex GA4000 should not be used in the external walls of buildings over 11 metres in height. Recent changes to Building Regulations mean that only non-combustible insulation or insulation of limited combustibility should be used in buildings of that height.
-
Applications: Click here to discover applications
- Roofs - Pitched Roof Insulation - Loft Insulation
- Roofs - Pitched Roof Insulation - Between Rafters
- Roofs - Pitched Roof Insulation - Between and Under Rafters
- Roofs - Pitched Roof Insulation - Between and Over Rafters
- Roofs - Pitched Roof Insulation - Pitched Roof Sarking
- Roofs - Flat Roof Insulation - Balconies and Terraces
- Roofs - Flat Roof Insulation - Between and Under Joists
- Walls - External Wall Insulation - Timber Frame Walls
- Floors - Ground Floor - Beam and Block Floors
- Floors - Ground Floor Insulation - Concrete Slab Ground Floors
- Floors - Ground Floor Insulation - Upgrading Concrete Slab Floors
- Floors - Ground Floor Insulation - Suspended Timber Floors
